AeroPlex 90 - Stewart

AeroPlex 90

Gain: 0.9, Max size: 6' x 10'

Lightweight acrylic substrate that will work well with short throw projection

AeroPlex 90 combines a semi-rigid substrate with a proprietary optical coating that is just below unity gain, providing an enhanced viewing cone and excellent white field uniformity. Slightly below unity gain, AeroPlex 90 is appropriate for extremely wide viewing angles and is well suited for short throw projection light paths when ambient light can be controlled. A strong edge blending performer for curved, semi-rigid displays, this product offers identical gain and color matching for multiple screen applications. A great choice when a glass substrate is not suitable.

Download Spec Sheet


Material Type Acrylic Rear
Maximum Size 6'(h) 10'(w)

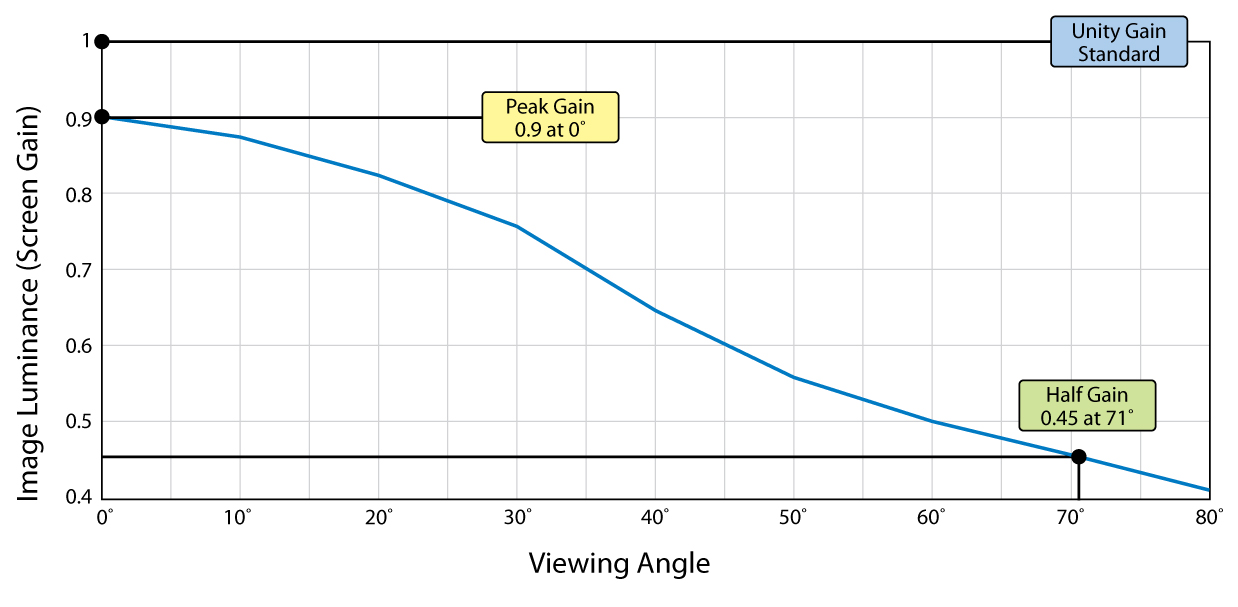

Peak Gain 0.9
Half Gain 71°
Ambient Light Rejection Value 72%
Ambient Light Resistance Good
Minimum Throw Distance 0.9 x Image Width
Edge Blending Properties Excellent
Passive 3D use No
Lay Flat Quality Very Good
Flame Resistance No
Can be Perforated No
