Stealth

Retractable, Above Ceiling Screen System with Trapdoor, and Optional Camera Deployment

Stealth

When a high-quality fit and finish is every bit as important as a high-quality image

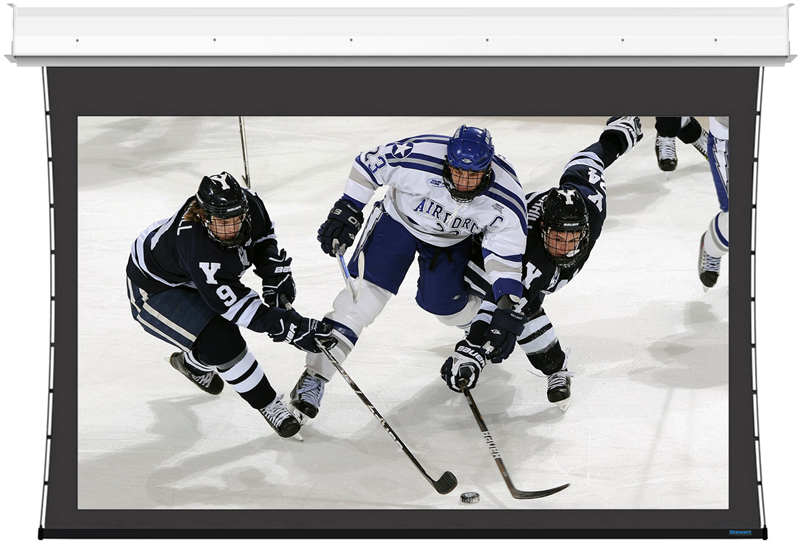

Stealth is a beautiful, small format retractable screen system with a trapdoor closure, allowing the screen to be completely hidden from view until deployment. Stealth offers exceptional reliability and features quiet operation, along with a choice of several electronic control options. Always seamless, Stealth is available in any of Stewart's front or rear 16K+ projection fabrics with image widths up to 13 feet. Stealth can also be equipped with optional camera deployment for video conferencing. Optional vertical or horizontal masking is also available.

This screen is used most commonly in:

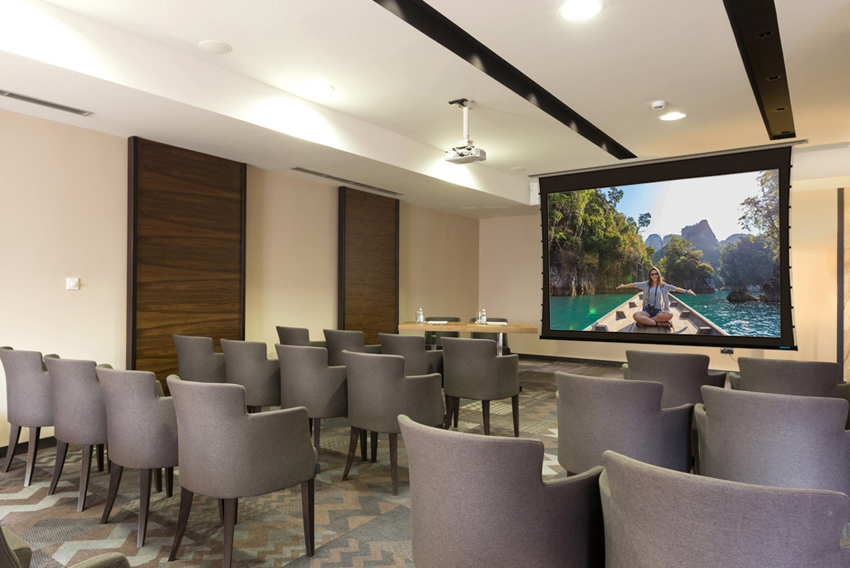

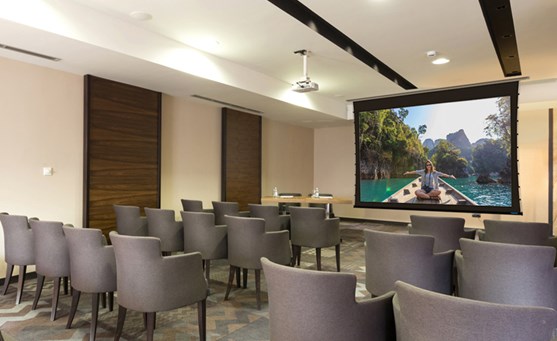

Corporate
Corporate
Education
Education

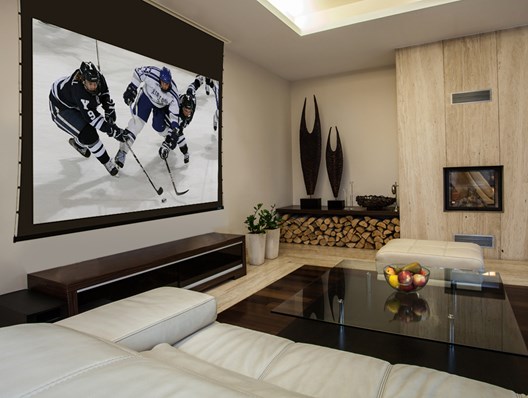

Residential
Residential

Stealth is discrete

No one knows there is a projection screen in the room until deployment. Hit the start button and a quiet, powerful motor activates the screen. Already, people are paying attention.

Stealth is discrete

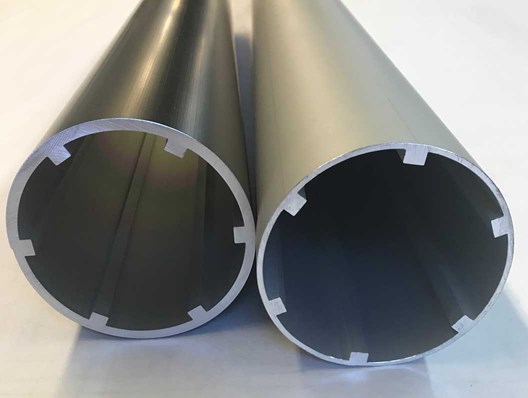

Two custom roller tubes are offered

Two custom roller tubes are offered

Our roller tubes are the best in the business and we engineer each one for perfect optimization. With Stealth we offer our 3 inch mill finish tube or our beefier, 3 inch Mamba Tube. The MT3 will allow you to achieve a little bigger image before jumping up in price to the next size.

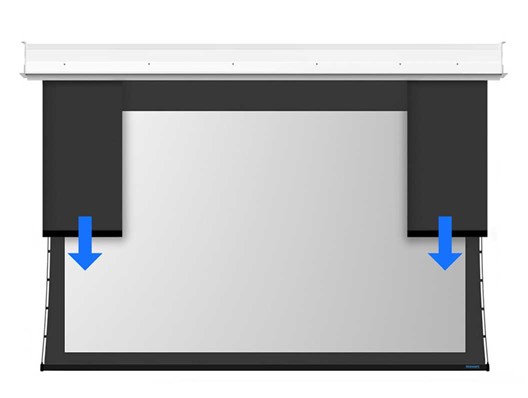

Optional masking available

Dual aspect ratios can be achieved by adding either vertical (as shown) or horizontal masking to this screen system. A common choice for vertical masking is a constant height, native Scope aspect ratio of 2.39 or 2.35 which can then be masked down to 1.85 Academy Flat or 1.78 HD. With horizontal masking, you can start with a native aspect ratio of 4:3 and mask down to nearly every other aspect ratio. Additionally, we use a wide range of acoustically transparent, masking fabrics. Each fabric is balanced for optimal sonic and visual performance.

Optional masking available

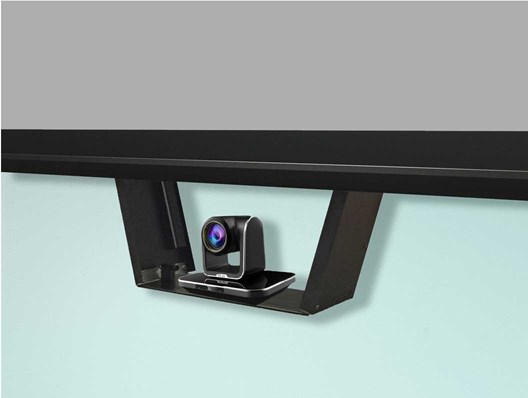

Optional camera deployment

Optional camera deployment

ETL approved, the Stealth Video Conference Screen (VCS) is engineered with super build quality and robust gear that will always deliver as specified. This screen system is beautifully concealed behind a well-engineered trapdoor closure. Precise arms carry your choice of camera systems, reliably and safely. The flexible control system allows deployment of independent elements when the camera is not in use.

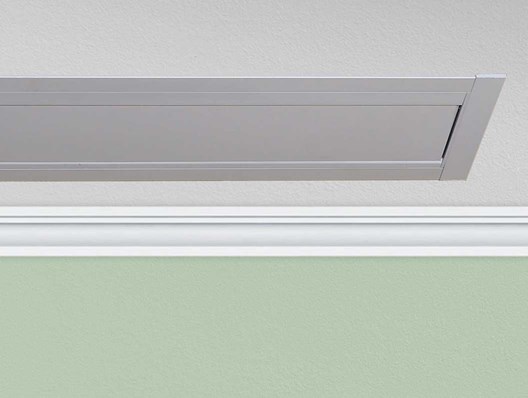

Finished with a beautifully detailed trapdoor closure

We offer trapdoors on Stealth to finish the ceiling professionally when a soffit or proscenium to conceal the screen system is not in the offing. With Stealth, form follows function with only the elegant essentials remaining. No one will know the screen is in the room until deployment.

Finished with a beautifully detailed trapdoor closure

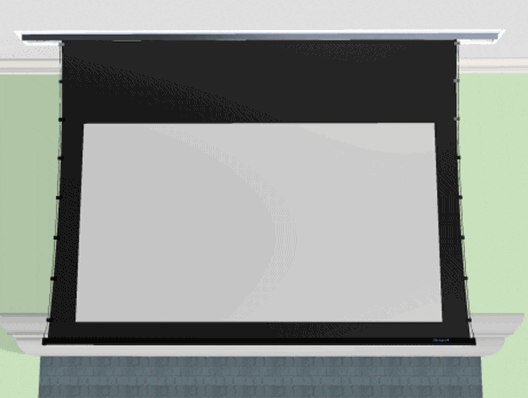

Perfect in-ceiling concealment

Perfect in-ceiling concealment

With a press of a button, your screen will retract into the ceiling keeping it clean and safe until your next viewing experience. Stealth gives you high functionality and allows you to free up valuable wall space so your room can express other ideas besides a place to watch TV.

Specs

  • Model:
    Stealth
  • Maximum image height:
    66 ¼”
  • Maximum image width:
    118"
  • Model:
    Stealth MT3
  • Maximum image height:
    87 ¾”
  • Maximum image width:
    156"
  • Model:
    Stealth V3
  • Maximum image height:
    63 ½”
  • Maximum image width:
    149"
  • Model:
    Stealth H3
  • Maximum image height:
    83 ¾”
  • Maximum image width:
    149"
  • Model:
    Stealth VCS
  • Maximum image height:
    57 ¼”
  • Maximum image width:
    102"
  • Note:
    Image Sizes Listed are with 12" Top Masking
